VHPS-VSR-1ETG-BV
VIGOUR · Gas Terminal — VSR-1ETG-BV Series
Gas Terminal. VSR-1ETG-BV Series from the VIGOUR VHPS catalogue. Wall-mounting tapping points. VSR-1EL series single-stage regulator.
- Type
- single-stage
- Inlet pressure P1
- max. 100 bar
- Outlet pressure P2
- 2/4/10/20/50 bar
- Body regulator and valves
- 316L · Chrome Plated Brass
Features
- Wall-mounting tapping points
- VSR-1EL series single-stage regulator
- Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0
- Stainless steel 316L body and bonnet for corrosive gases
- Modular design
- Diaphragm type shut-off valves
- Suitable for oxygen
- Tested for use with oxygen
- Component Testing
- Calibration Systems
- Laboratory Pressure Control
- High Pressure Samping Systems
- Service & Test Equipment
Materials
| Type | single-stage |
|---|---|
| Inlet pressure P1 | max. 100 bar |
| Outlet pressure P2 | 2/4/10/20/50 bar |
| Body regulator and valves | 316L · Chrome Plated Brass |
| Valve seat (regulator) | PCTFE · (shut-off valve) PTFE |
| Diaphragm (regulator) | Hastelloy ® C276 |
| Filter | SS 316L |
| Temperature range | -30 o C to +74 o C |
| Leak rate: (to atmosphere) | 1x10 -8 mbar I/s He · (via seat) 1x10 -6 mbar I/s He |
| Flow capacity | Cv=0.18 |
| Weight | 4.1~5.7kg |
Applications & Documents
Ordering
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
1
Inlet connection - type and size
single select · 5 values2
Outlet connection - type and size
single select · 5 values3
Boby Material
single select · 2 values4
Inlet Pressure P 1
single select · 2 values5
Outlet Pressure P 2
single select · 5 values6

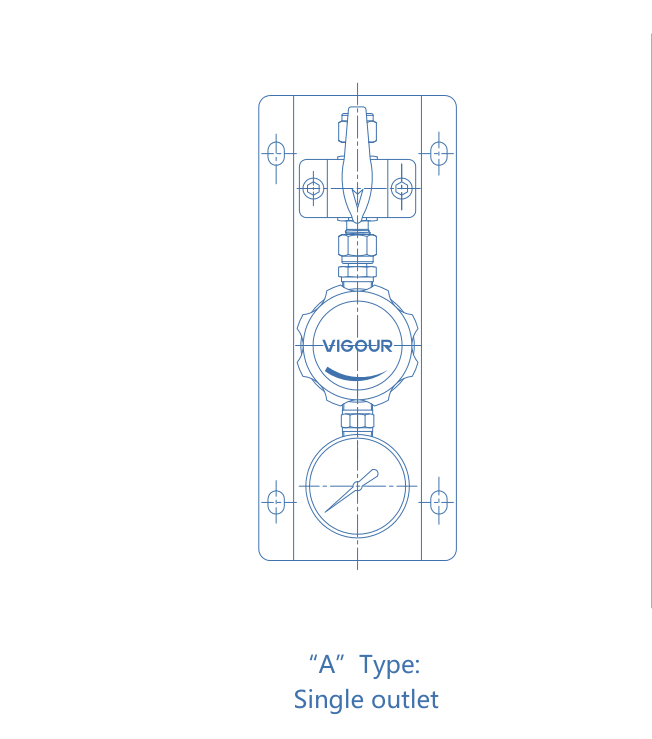

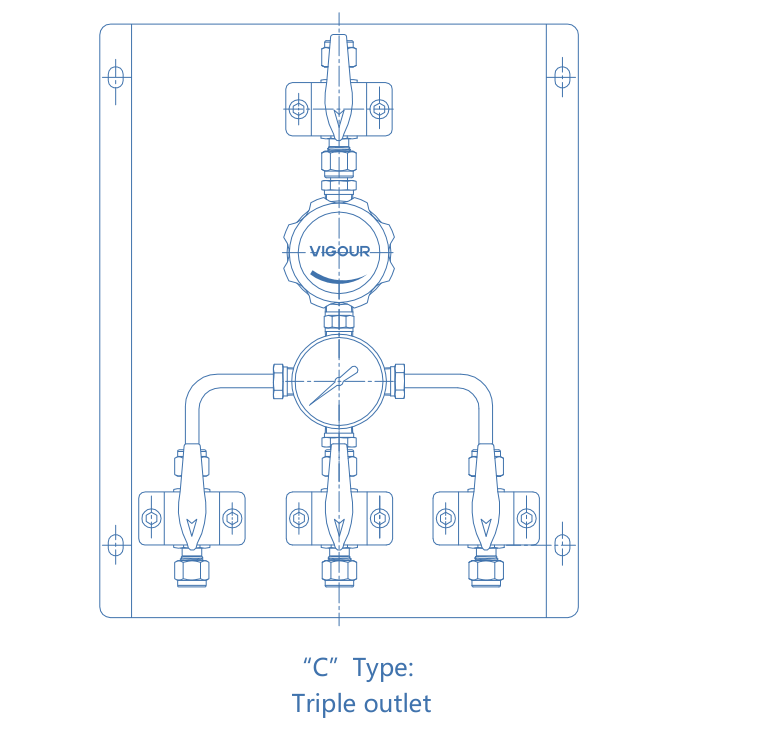

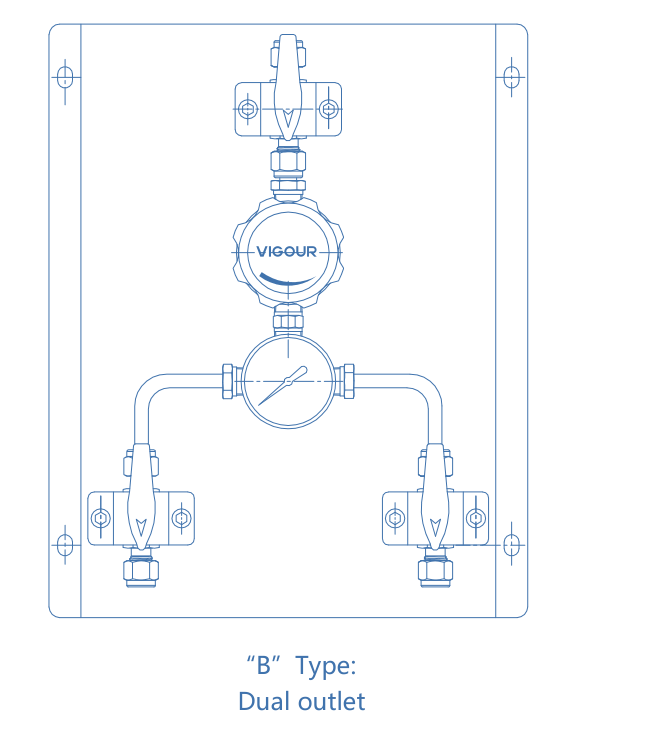

Outlet Type
single select · 3 values7
Gas Type
single select · 1 valuesOrder part number
VGR-VSR-1ETG
Select variables
1
