VHPS-VSR-2TG
VIGOUR · Gas Terminal — VSR-2TG Series
Gas Terminal. VSR-2TG Series from the VIGOUR VHPS catalogue. Wall-mounting tapping points. VSR-2EL series single-stage regulator.
- Type
- single-stage
- Inlet pressure P 1
- max. 300 bar
- Outlet pressure P 2
- 2/4/10/20/35/50 bar
- Body regulator and valves
- 316L · Chrome Plated Brass
Features
- Wall-mounting tapping points
- VSR-2EL series single-stage regulator
- Stainless steel 316L body and bonnet for corrosive gases
- Modular design
- Diaphragm type shut-off vlaves
- Suitable for oxygen
- Tested for use with oxygen
- Component Testing
- Calibration Systems
- Laboratory Pressure Control
- High Pressure Sampling Systems
- Service & Test Equipment
Materials
| Type | single-stage |
|---|---|
| Inlet pressure P 1 | max. 300 bar |
| Outlet pressure P 2 | 2/4/10/20/35/50 bar |
| Body regulator and valves | 316L · Chrome Plated Brass |
| Valve seat (regulator) | PCTFE · (shut-off valve) PEEK |
| Diaphragm (regulator) | Hastelloy ® C276 · (valve) Hastelloy ® C276 |

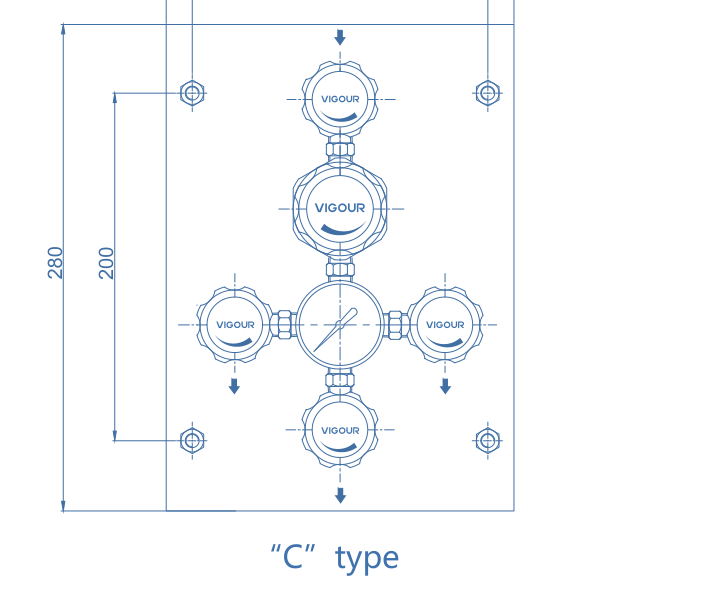

| “C”type | — · (option) Single outlet Kalrez ® (FFKM) |
| Filter | SS 316L |
| Temperature range | -30 ℃ to +74 ℃ |
| Leak rate (to atmosphere) | 1x10 -8 mbar I/s He · (via seat) 1x10 -6 mbar I/s He |
| Flow capacity | — · (Outlet pressure:2/4/10/20 bar) Cv=0.28 Cv=0.08 |
| Weight | 4.5~6.9kg |
Applications & Documents
Ordering
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
1
Inlet connection - type and size
single select · 3 values2
Outlet connection - type and size
single select · 3 values3
Body Material
single select · 2 values4
Inlet Pressure P 1
single select · 2 values5
Outlet Pressure P 2
single select · 6 values6
Inlet Type
single select · 3 values7
Type Of Gas
single select · 1 valuesOrder part number
VGR-VSR-2TG
Select variables
1
