High-flow pressure reducing regulator — Cv 1.0, 316L stainless body only. Inlet to 3,000 psi (210 bar), outlet 25–500 psi, 1/2" FNPT ports. The W092 model is for liquid and water only.
- Body
- Stainless steel 316L only
- Bonnet
- Nickel-plated forged brass (standard) / stainless (option)
- Diaphragm
- Stainless steel 316L
- Valve seat
- Teflon (Kel-F, Polyimide optional)
Materials
| Body | Stainless steel 316L only |
|---|---|
| Bonnet | Nickel-plated forged brass (standard) / stainless (option) |
| Diaphragm | Stainless steel 316L |
| Valve seat | Teflon (Kel-F, Polyimide optional) |
| Max inlet | 3,000 psig (210 bar) / 600 psig (42 bar) |
| Outlet range | 25 · 50 · 100 · 200 · 350 · 500 psig |
| Ports | 1/2" FNPT · gauge port 1/4" NPT |
| Flow capacity | Cv 1.0 |
| Leakage | to 2×10⁻⁸ atm cc/sec helium |
| Operating temp. | -40°C to +70°C |
| Weight | Approx. 1.6 kg |
Applications & Documents
Ordering
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
1
Basis Series Number
single select · 2 values2
Outlet Pressure Range
single select · 6 values3

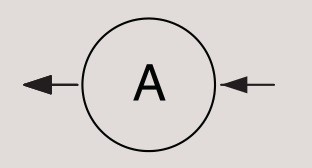

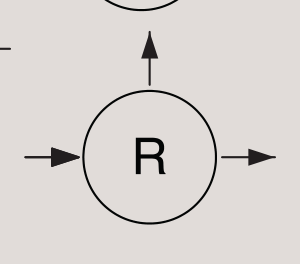

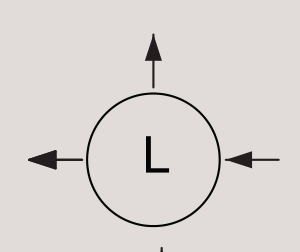

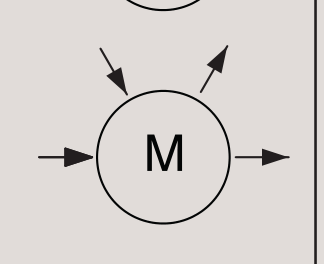

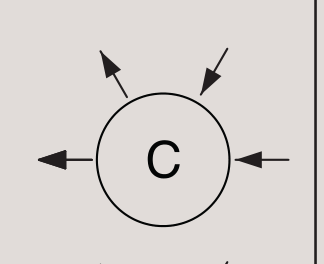

Port Type
single select · 5 values4
Inlet / Outlet Ports Size
single select · 1 values5
Flow Capacity
single select · 1 values6
Diaphragm Material
single select · 2 values7
Inlet Pressure
single select · 2 values8
Self Venting
single select · 2 values9
High Temperature
single select · 4 valuesOrder part number
DST
Select variables
1
