DR110
Very-high-flow pressure reducing regulator — Cv 5.0. 316L stainless (to 250 bar) or brass (to 100 bar) body. Inlet 42 / 150 / 250 bar by model, outlet 2–20 bar, 1/2", 3/4" or 1" NPT ports, optional 20K/30K flange or tube connection. Teflon diaphragm and seat, approx. 6.5 kg.
- Body
- 316L stainless (to 250 bar) / brass (to 100 bar)
- Diaphragm
- Teflon
- Valve seat
- Teflon
- Inlet pressure
- 42 / 150 / 250 bar by model
Materials
| Body | 316L stainless (to 250 bar) / brass (to 100 bar) |
|---|---|
| Diaphragm | Teflon |
| Valve seat | Teflon |
| Inlet pressure | 42 / 150 / 250 bar by model |
| Outlet range | 2 · 4 · 7 · 10 · 20 bar |
| Ports | 1/2" · 3/4" · 1" NPT · 20K/30K flange or tube (option) |
| Flow capacity | Cv 5.0 |
| Tube O.D. | 1/2" tube — 21.7 mm · 3/4" tube — 27.2 mm · 1" tube — 34 mm |
| Weight | Approx. 6.5 kg |
Applications & Documents
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
Basis Series Number
single select · 2 valuesBody Material
single select · 2 valuesInlet Pressure
single select · 3 valuesOutlet Pressure Range

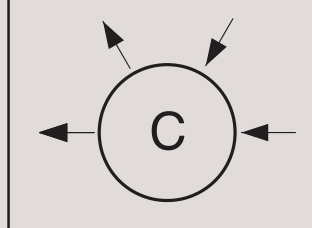

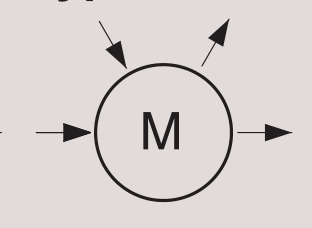

single select · 5 valuesPorts Type
single select · 2 valuesConnection Type
single select · 1 valuesInlet / Outlet Ports Size
single select · 3 valuesFlange / Tube Option
single select · 6 values · optionalHigh Temperature
single select · 4 values · optionalSelect variables
