DR60
DR60
Economical pressure reducing regulator. Nickel-plated forged brass body, NBR synthetic-rubber diaphragm. Inlet 3,000 psi (210 bar) or 600 psi (42 bar), outlet 25–200 psig, Cv 0.2, 1/4" FNPT ports.
- Body
- Nickel-plated forged brass
- Bonnet
- Zinc casting, nickel plated
- Diaphragm
- Synthetic rubber (NBR)
- Valve seat
- Teflon
Materials
| Body | Nickel-plated forged brass |
|---|---|
| Bonnet | Zinc casting, nickel plated |
| Diaphragm | Synthetic rubber (NBR) |
| Valve seat | Teflon |
| Max inlet | 3,000 psig (210 bar) / 600 psig (42 bar) |
| Outlet range | 25 · 50 · 100 · 200 psig |
| Ports | 1/4" FNPT · gauge port 1/4" NPT |
| Flow capacity | Cv 0.2 |
| Leakage | to 2×10⁻⁶ atm cc/sec helium |
| Operating temp. | -40°C to +70°C |
| Weight | Approx. 1.0 kg |
Applications & Documents
Ordering
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
1
Max. Inlet Pressure
single select · 2 values2
Outlet Pressure Range
single select · 4 values3

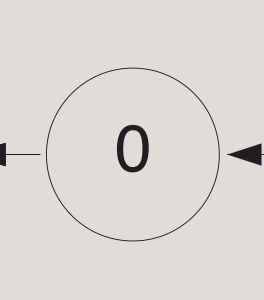

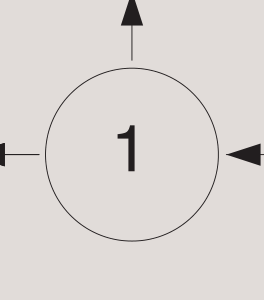

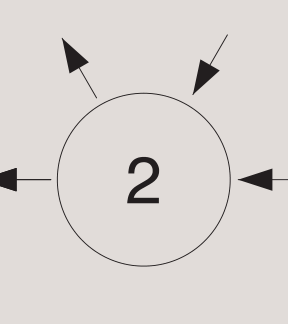

Inlet / Outlet Ports
single select · 3 valuesOrder part number
DST-DR60
Select variables
1
