Ultra-high-pressure reducing regulator designed mainly for liquids — hydraulic oil, oil, water — as well as gases. Body and all internal parts in 316L stainless, DRASTAR piston diaphragm. Max inlet 700 bar (10,000 psi), outlet 5–700 bar.
- Body
- 316L stainless — body and all internal parts
- Diaphragm
- Piston diaphragm developed by DRASTAR
- Max inlet
- 420 bar (6,000 psi) / 700 bar (10,000 psi)
- Outlet range
- 5 bar (70 psi) to 700 bar (10,000 psi)
Materials
| Body | 316L stainless — body and all internal parts |
|---|---|
| Diaphragm | Piston diaphragm developed by DRASTAR |
| Max inlet | 420 bar (6,000 psi) / 700 bar (10,000 psi) |
| Outlet range | 5 bar (70 psi) to 700 bar (10,000 psi) |
| Ports | 1/4" · 3/8" · 1/2" FNPT |
| Flow capacity | Cv 0.06 (standard) / 0.2 (option) |
| Self venting | Standard |
| Cleaning | Class 100 / Class 10 clean room |
| Intended use | Liquids (hydraulic, oil, water) and gases |
Applications & Documents
Ordering
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
1
Max. Inlet Pressure
single select · 2 values2
Body Material
single select · 1 values3
Outlet Pressure Range
single select · 6 values4

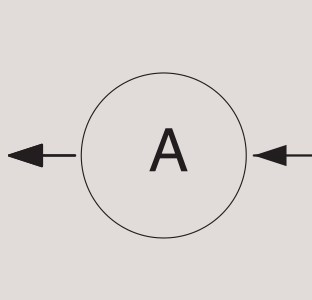

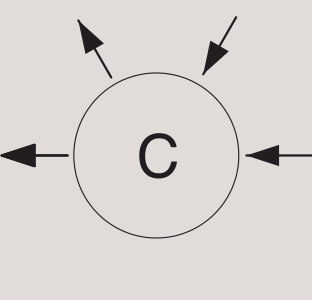

Ports Type
single select · 2 values5
Inlet / Outlet Ports Size
single select · 3 values6
Flow Capacity
single select · 2 values7
Self Venting
single select · 1 values8
High Temperature
single select · 4 valuesOrder part number
DST-085
Select variables
1
