LF-301 · Low-Flow Pressure Regulator
LF-301 piston-sensed single-stage low-flow pressure regulator. Max inlet 300 bar (4,350 psi), max outlet 180 bar (2,610 psi). 316 SS, HT Brass or Hastelloy C-276 body. Cv 0.03/0.06, 1/4" connections, PED 2014/68/EU, made in UK.
- Max inlet pressure
- 300 bar (4,350 psi)
- Max outlet pressure
- 180 bar (2,610 psi)
- Cv
- 0.03 / 0.06
- Body material
- SS 316 / HT Brass / Hastelloy C-276
Materials
| Max inlet pressure | 300 bar (4,350 psi) |
|---|---|
| Max outlet pressure | 180 bar (2,610 psi) |
| Cv | 0.03 / 0.06 |
| Body material | SS 316 / HT Brass / Hastelloy C-276 |
| Diaphragm | Hastelloy C-276 |
| Connection | 1/4" |
| Standard | PED 2014/68/EU |
| Made in | UK |
Applications & Documents
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
Cv Value
single select · 2 valuesBody Material
single select · 3 valuesControl Pressure (Outlet Range)
single select · 3 valuesO-ring Material
single select · 3 valuesSeat Material
single select · 3 valuesMax inlet pressure depends on seat: F (FEP) ≤50 bar · K (PCTFE) ≤210 bar · P (PEEK) ≤300 bar

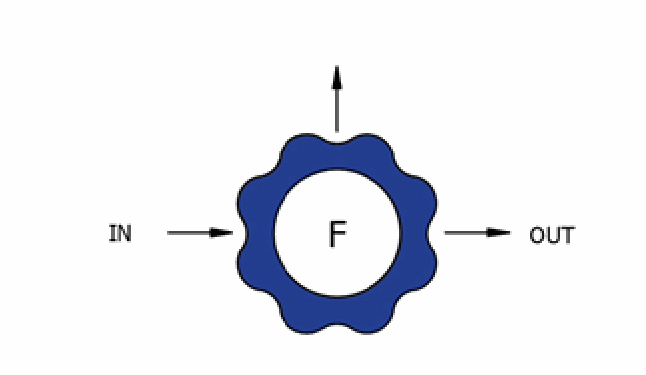

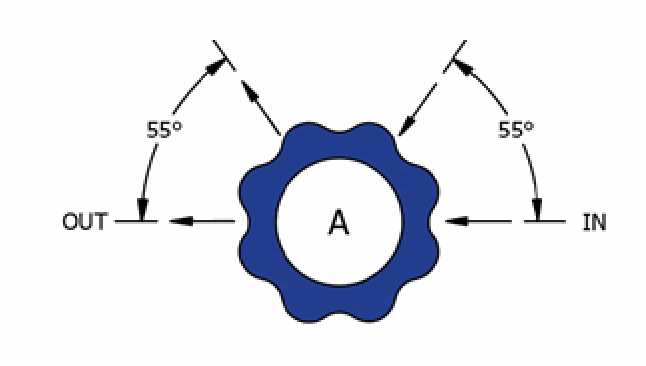

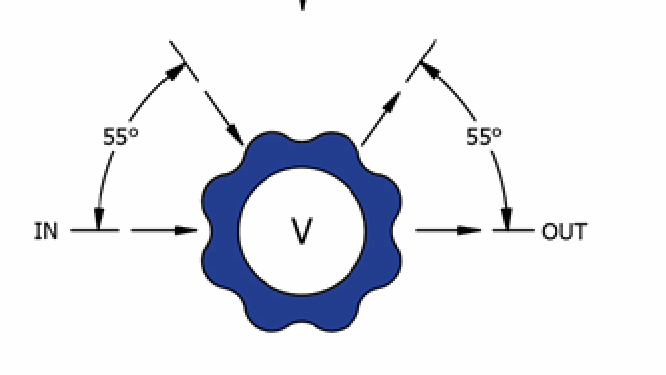

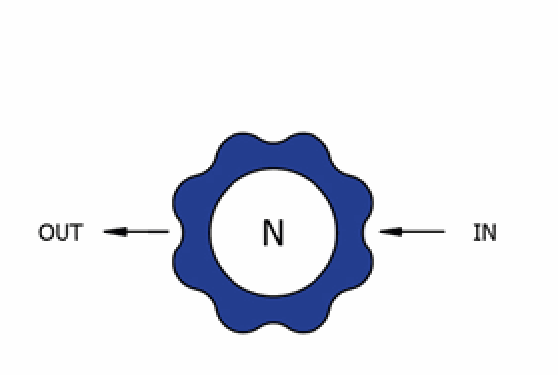

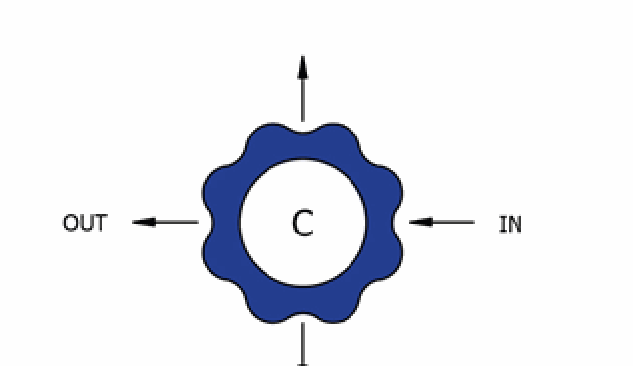

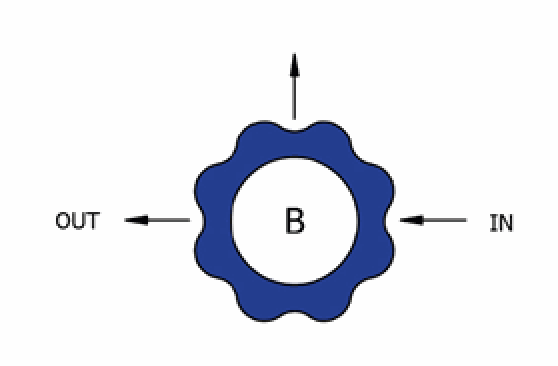

Porting Configuration
single select · 6 valuesRefer to page 3 of the datasheet for full porting options.
