DR80
DR80
High-pressure reducing regulator. 316L stainless body, aluminum 2024 bonnet. Inlet 420 bar (6,000 psig) or 700 bar (10,000 psig), outlet 70–700 bar, 1/4" or 1/2" NPTF ports, Cv 0.06 standard / 0.2 optional. Vespel seat, approx. 2.4 kg.
- Body
- Stainless steel 316L
- Bonnet
- Aluminum #2024
- Valve seat
- Vespel (standard)
- Max inlet
- 420 bar (6,000 psig) / 700 bar (10,000 psig)
Materials
| Body | Stainless steel 316L |
|---|---|
| Bonnet | Aluminum #2024 |
| Valve seat | Vespel (standard) |
| Max inlet | 420 bar (6,000 psig) / 700 bar (10,000 psig) |
| Outlet range | 70 · 150 · 250 · 350 · 500 · 700 bar |
| Ports | 1/4" or 1/2" NPTF |
| Flow capacity | Cv 0.06 (standard) / 0.2 (option) |
| Leakage | to 2×10⁻⁶ atm cc/sec helium |
| Operating temp. | -40°C to +70°C |
| Weight | Approx. 2.4 kg |
Applications & Documents
Ordering
Configure your order
Select the variables exactly as they appear in the manufacturer datasheet. The full part number is assembled automatically.
1
Max. Inlet Pressure
single select · 2 values2
Body Material
single select · 1 values3
Outlet Pressure Range
single select · 6 values4

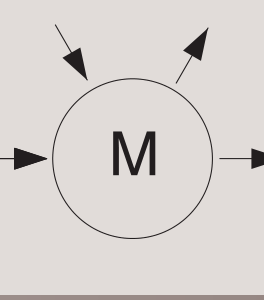

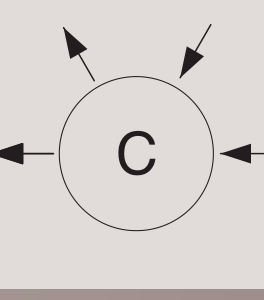

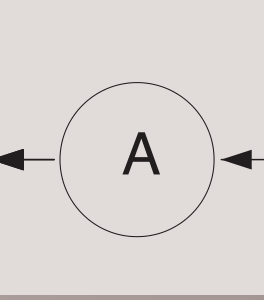

Port Type
single select · 3 values5
Inlet / Outlet Ports Size
single select · 2 values6
Flow Capacity
single select · 2 values7
Self Venting
single select · 2 values8
High Temperature
single select · 4 valuesOrder part number
DST-DR80
Select variables
1
